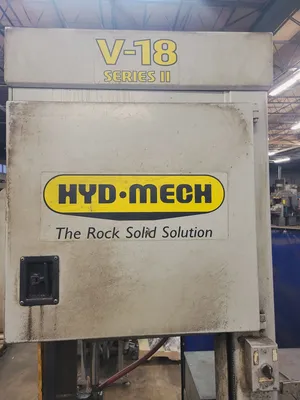

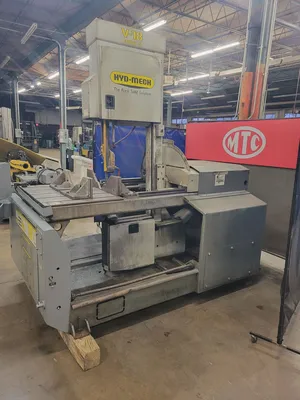

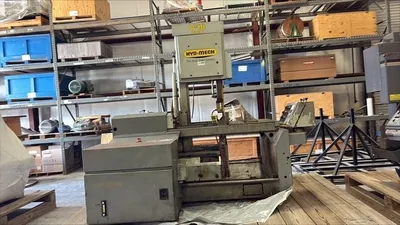

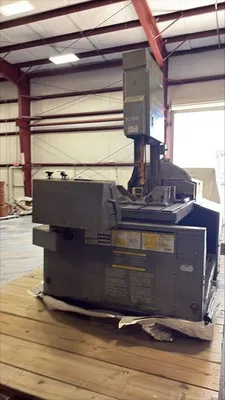

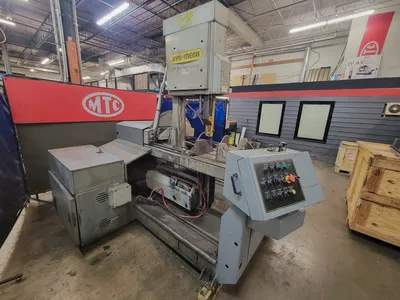

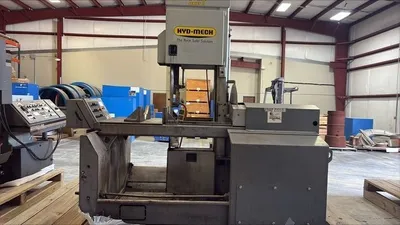

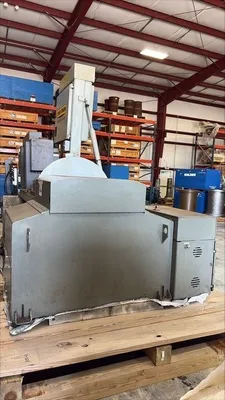

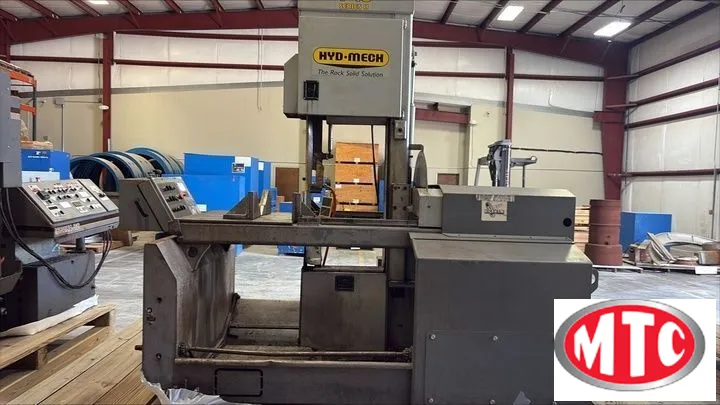

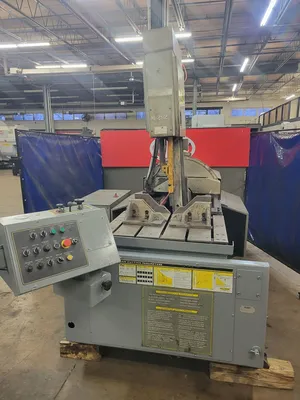

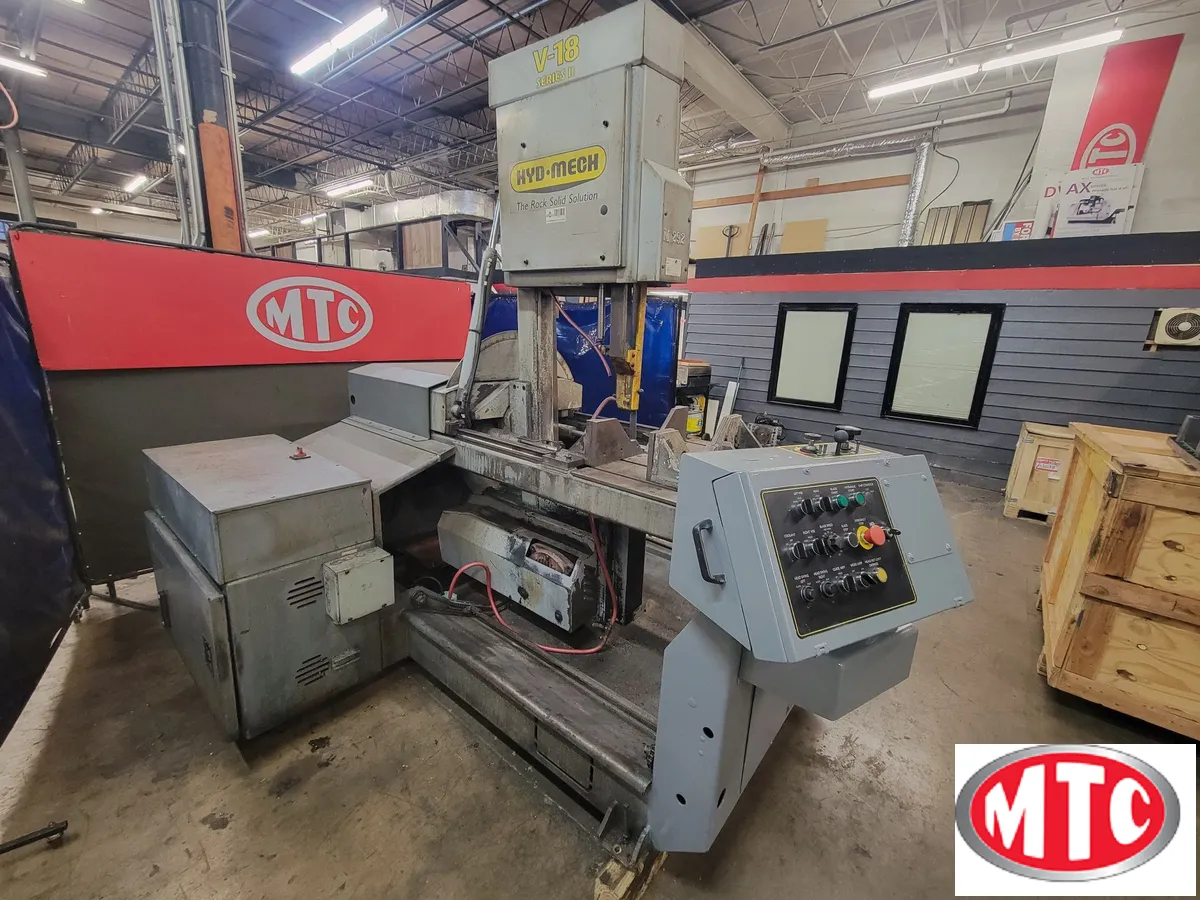

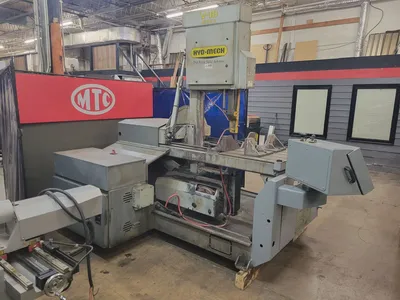

Used 2001 HYD-MECH V-18 II | vertical tilt frame saws

GENERAL SPECIFICATIONS
Capacity at 90° Rectangles: 18.5” X 20.5”
Capacity at 90° Rounds: 17.5”
Capacity at 45° Rectangles: 18” X 20”
Capacity at 45° Rounds: 13”
Blade Length: 14’ 11”
Blade Width: 1-¼”
Blade Thickness: 0.042”
Blade Speed: 75 - 400 SFM
Blade Wheel Diameter: 19”
Table Height: 38”

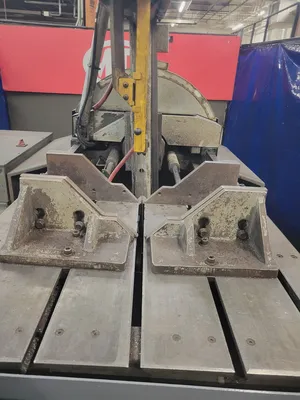

INCLUDES: Hydraulically Actuated Head Tilt to 45° Either Direction, Hydraulically Actuated Blade Tension, Hydraulically Actuated Guide Arm Positioning, Left & Right Full Stroke Hydraulic Vises, Hardened and Replaceable Wear Strips, Variable Frequency Drive and Powered Blade Brush.
FPM 75-400 FPM
Blade Length 14.92'
Vertical Band Saw
Mitering Bandsaw
vertical tilt frame bandsaw
Year 2003

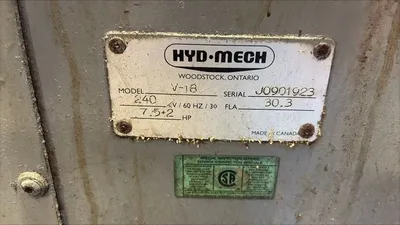

Model V-18 II
Power 7.5 hp
Blade Width 1.25"
Dimensions
72” x 110 “ x 98” H
Weight 4500 Lbs.
