2026 AMADA VT5063SW, vertical Tilt frame Fully automatic, Programmable saw

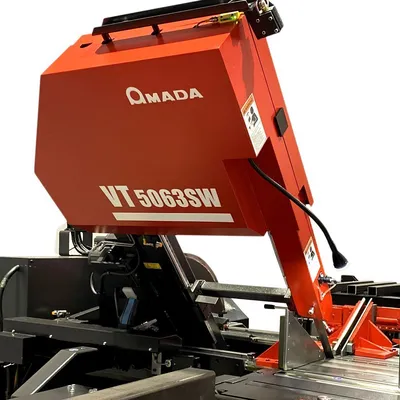

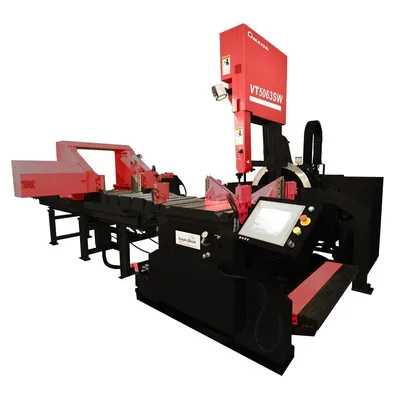

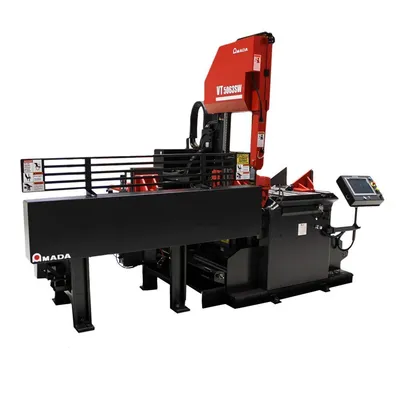

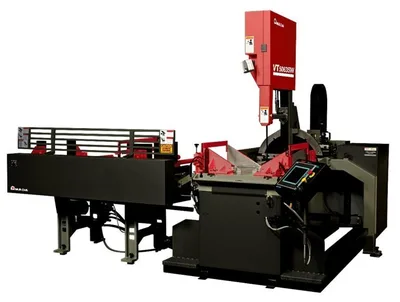

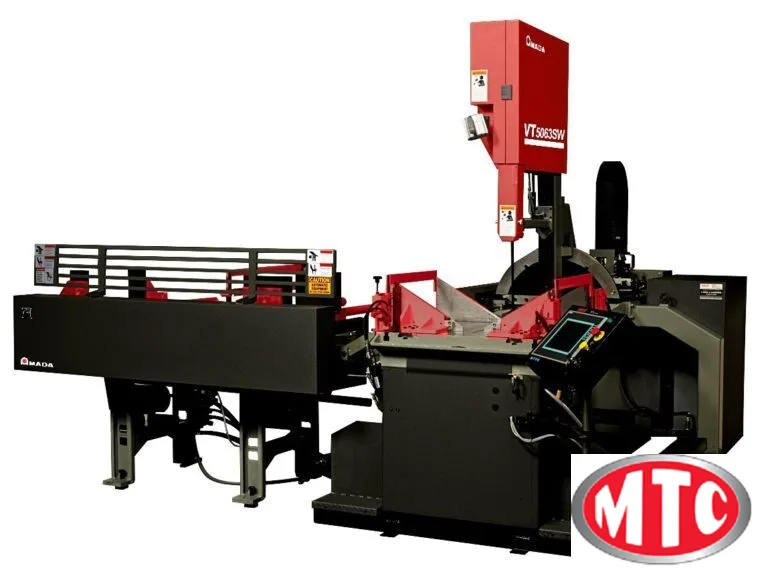

VT5063SW (2150APCS) Vertical TiltFrame Bandsaw
SPECIFICATIONS & FEATURES
NOTE: Metric specifications represent nearest SI Unit converted from the basic
U.S. Customary Unit.
Capacity Rectangles Rounds
Nominal 20" x 25" (508 mm x 635 mm) 20" (508 mm)
Blade at 45° 20" x 17" (508 mm x 432 mm) 17" (432 mm)
Blade at 60 o 20" x 11.25" (508 mm x 285 mm) 11.25" (285 mm)
Blade Drive: Electric with sensor less vector control for smooth acceleration
and full torque.
Table Height: 40” Table work Height.
Speed Range: Infinitely variable: 30 to 500 FPM (9 to 152 m/min), 10 HP
Standard. Blade speed can be automatically set when material is selected.
Tilting Column: For miter cutting up to 60o left and right of vertical. Electronic
tilt The column is electrically powered, chain driven, with encoder feedback
and AMADA MARVELPC3 touch screen controller for precision miter
positioning.
3° Canted Column : Standard 3degree forward approach angle for increased
efficiency in cutting of structural materials.
Feed Force: Direct Force Sensing Electric Ball Screw Feed 0 – 350 lbs. (1560
N); column travels on recirculating linear ball ways. Feed pressure can be
automatically set when material is selected.
Blade: 18' 2" (5537 mm) long x 1.5" (41 mm) wide, .05" (1.27 mm). One
WeldedEdge Band is furnished with each machine as part of standard start
up supplies.
Blade Guides: Rotating Easy Load Combination Carbide and Ball Bearing
Roller guides with self tensioning design.
1 $158,760.00 $158,760.00 No
Page 1 / 5
efficiency in cutting of structural materials.
Feed Force: Direct Force Sensing Electric Ball Screw Feed 0 – 350 lbs. (1560
N); column travels on recirculating linear ball ways. Feed pressure can be
automatically set when material is selected.
Blade: 18' 2" (5537 mm) long x 1.5" (41 mm) wide, .05" (1.27 mm). One
WeldedEdge Band is furnished with each machine as part of standard start
up supplies.
Blade Guides: Rotating Easy Load Combination Carbide and Ball Bearing
Roller guides with self tensioning design.
Blade Tension: Hydraulically controlled, 45,000 psi. max. (310 MPa). Machine
equipped with automatic blade break/blade stall shutoff switch.
Upper Blade Guide Arm: Hydraulically positioned and locking, controlled by
selector switch at operator's station.
Vises: Hydraulic, full stroking with 91/2” high x 15” wide 60o faceplates.
Optional variable vise pressure available (Option Code M9A).
Coolant System: Built in with Flood system (60 Gallon Capacity), available with
Drop Lubrication system (requires compressed air connection) (Option code
ML2), including chip pan with chip removal ramp (optional Manual or power
Chip Conveyors available).
Flushing Hose: Washes away chips from hardtogetat places reducing clean
up time.
Automatic Bar Feed : The Automatic Bar Feed design features a 48” stroke
length with indexing speeds of up to 60 ft./min., and creep speeds of 33 in.
/min. The bar feed vise is servo driven with encoder feedback and combines
precision double ball screws with preloaded recirculating linear guides,
resulting in positioning accuracy of +/ .005” per index. The vise itself is
hydraulically clamped to prevent material slippage. Optional outboard and
second machine vises are available (must specify right or lefthand machine
configuration at the time of order Option Codes F3 & F4).
Amada Machinery PC3 Programmable Control® : Provides a Programmable
Logic Control Unit with a 12” color, touch screen display. The control features
graphical part programming with memory for up to 500 jobs and parts, as well
as a material selection chart and customizable material library. Both blade
speed and feed force are automatically bladeset according to material type for
optimal cutting performance. Job programming consists of setting the cutoff
length, angle and number of pieces to be cut. Additional features include
Inch/Metric capability, outofstock shut down device, a fast cut job option and
expanded memory storage using removable media. Also includes Jammed
Blade Protection that senses resistance as the column returns and stops to
prevent blade damage.
Material can also be fed through the machine manually in both directions
using the hydraulic shuttle vise. Blade can be stopped with all other power
functions operative.
Standard Lf toRt Work : Entry Opposite Hand – RIGHTTOLEFT work entry
available (Modification M4A).
Motors: Main Drive: 10 H.P., 1800 RPM, totally enclosed, fan cooled, ball
bearing.
Coolant Pump: 1/8 H.P. (.1 kW), I.P. 54 Rating, totally enclosed motor built in
integrally.
Hydraulic Pump: 5 H.P. (3.7 kW), 1800 RPM, totally enclosed fan cooled, ball
bearing, system pressure 900 psi (6.2 MPa).
Controls : IEC fused disconnect switch and magnetic motor starters with
overload and lowvoltage protection. Power supply provides low voltage (24
volts DC) control to all push buttons at operator's control panel and machine
lighting circuits. PLC control and drives mounted in moisture tight compartment
with vibration isolation mountings. Electrical Equipment conforms to National
Electrical Code NFPA 79. The Electrical Control Panel is U.L. Labeled.
WorkLift Roller on Right Side of Machine Bed: Eccentric type, manually
controlled, hydraulically operated to raise roller slightly above machine table to
facilitate the passage of material over the surface of the worktable.
WorkLift Roller on Left Side of Machine Bed Eccentric type, manually
controlled, hydraulically operated to raise roller slightly above machine table to
facilitate the passage of material over the surface of the worktable.
Page 2 / 5
volts DC) control to all push buttons at operator's control panel and machine
lighting circuits. PLC control and drives mounted in moisture tight compartment
with vibration isolation mountings. Electrical Equipment conforms to National
Electrical Code NFPA 79. The Electrical Control Panel is U.L. Labeled.
WorkLift Roller on Right Side of Machine Bed: Eccentric type, manually
controlled, hydraulically operated to raise roller slightly above machine table to
facilitate the passage of material over the surface of the worktable.
WorkLift Roller on Left Side of Machine Bed Eccentric type, manually
controlled, hydraulically operated to raise roller slightly above machine table to
facilitate the passage of material over the surface of the worktable.
Table Height 40”
Standard Machine Color Black and Red. Also available in Marvel Classic
Machine Tool Gray.
Shipping Weight 8,300 lbs. (3,727 kg) base machine & index table.
Blades : Eagle beak VTR, 18’2’’ long x 1.5” wide, 3/6 tooth pitch blades ship
standard with every new saw purchase included in net price unless otherwise
specified on purchase order. Please specify alternative blade type at time of
purchase.
Notice: This quotation is based on the assumption that the end user’s
electrical power supply conforms to National Electrical Code NFPA No. 79
2012, section 4.3 at the machine terminals.
Warning: Failure of the end user’s electrical supply to conform to the above
standard can hinder machine performance and may require the addition of
extra cost components not included with the standard machine. Repair and
replacement of components damaged as a result of an inadequate power
supply are not overfed by the manufacturer’s warranty
