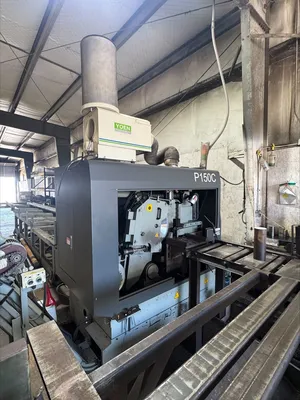

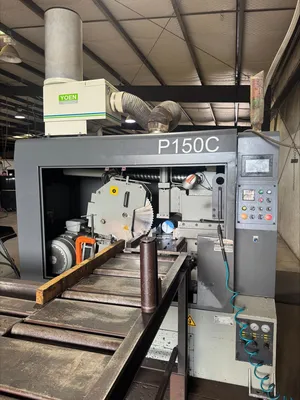

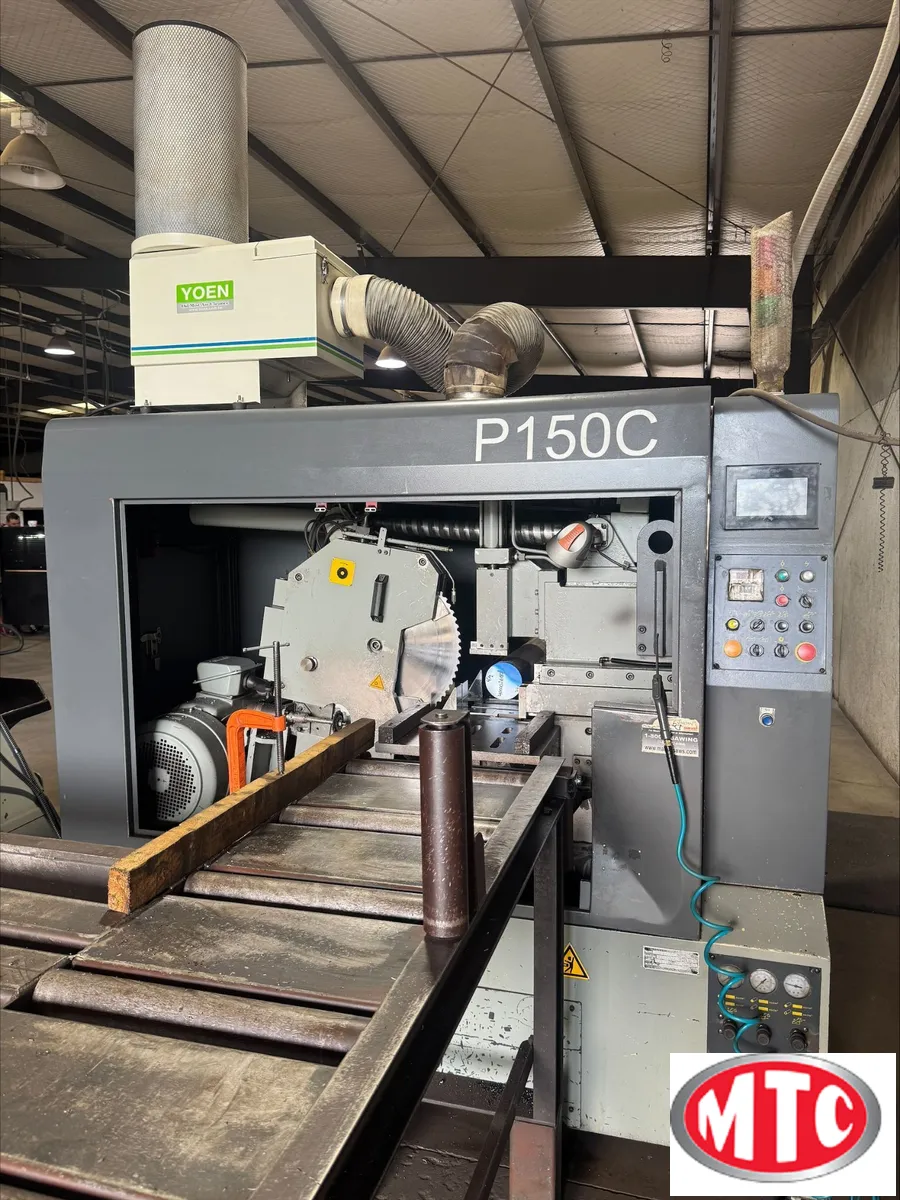

2017 MARVEL/SPARTAN P150, 6" CNC cold saw

CAPACITY: ROUND 2-3/4″ x 5.9″
SPEED RANGE 30 – 130 RPM controlled through an Inverter Drive.
BLADE 460 mm x 2.7 mm.
MOTORS Blade Drive: 20 H.P., Hydraulic: 5 H.P.
Speed Range: 30 – 130 RPM controlled through an Inverter Drive.

• Servo Blade Feed: Servo drive blade feed and precision ball screw provide precision and vibration free cutting. Cutting force is infinitely adjustable to accommodate different types of material. An electro-magnetic brake device eliminates transmission backlash.

• Blade Guides: Four carbide inserts provide additional support for the blade allowing for the use of thinner blades, reducing kerf loss.

• Vises: Machine vises clamp the material from the sides as well as vertically. The floating shuttle vise retracts the material as the saw blade returns, preventing contact as the blades return to the start position.

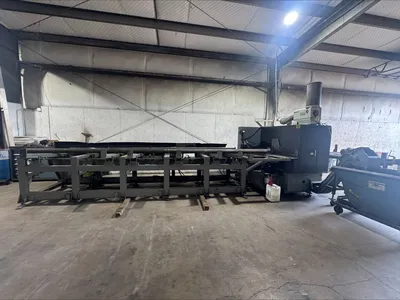

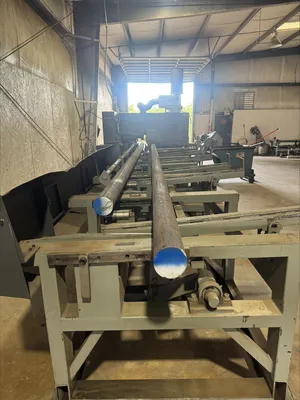

• Loading Table: The automatic loading table allows for storage of bar stock and fully automatic feeding. The bar stock is lifted piece by piece and fed into the saw. Table weight capacity is 10,780 lbs.

• Hydraulic Automatic Sorting Chute: The sorting chute automatically directs the trim cut and remnant away from good cut pieces.

• Independently Powered Chip Brush: The chip brush assures chips are removed from the gullet of the blade providing straighter cuts and longer blade life.

• Chip Conveyor: The paddle-type chip conveyor removes chips from the machine base and automatically deposits them in a collection container.
