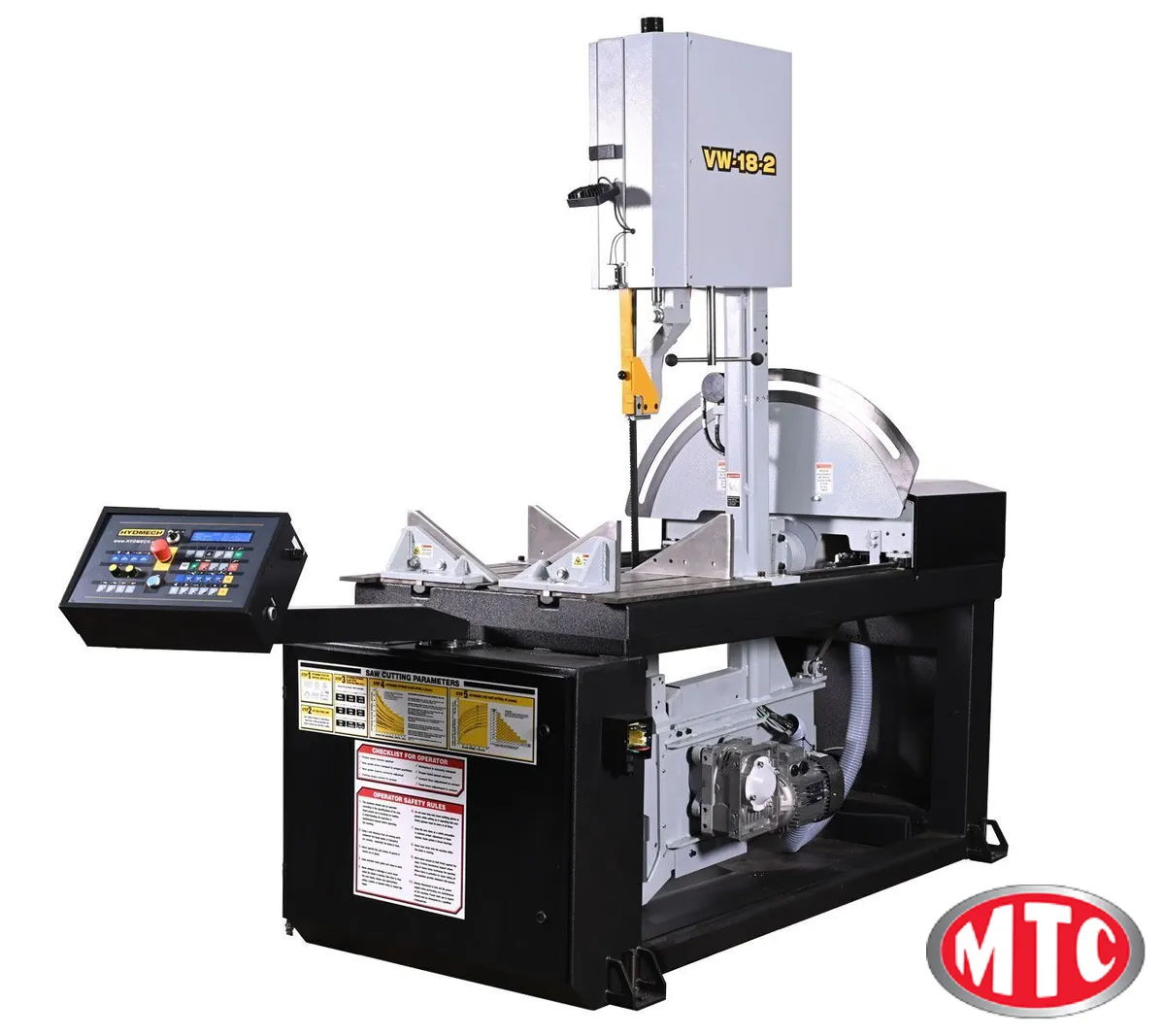

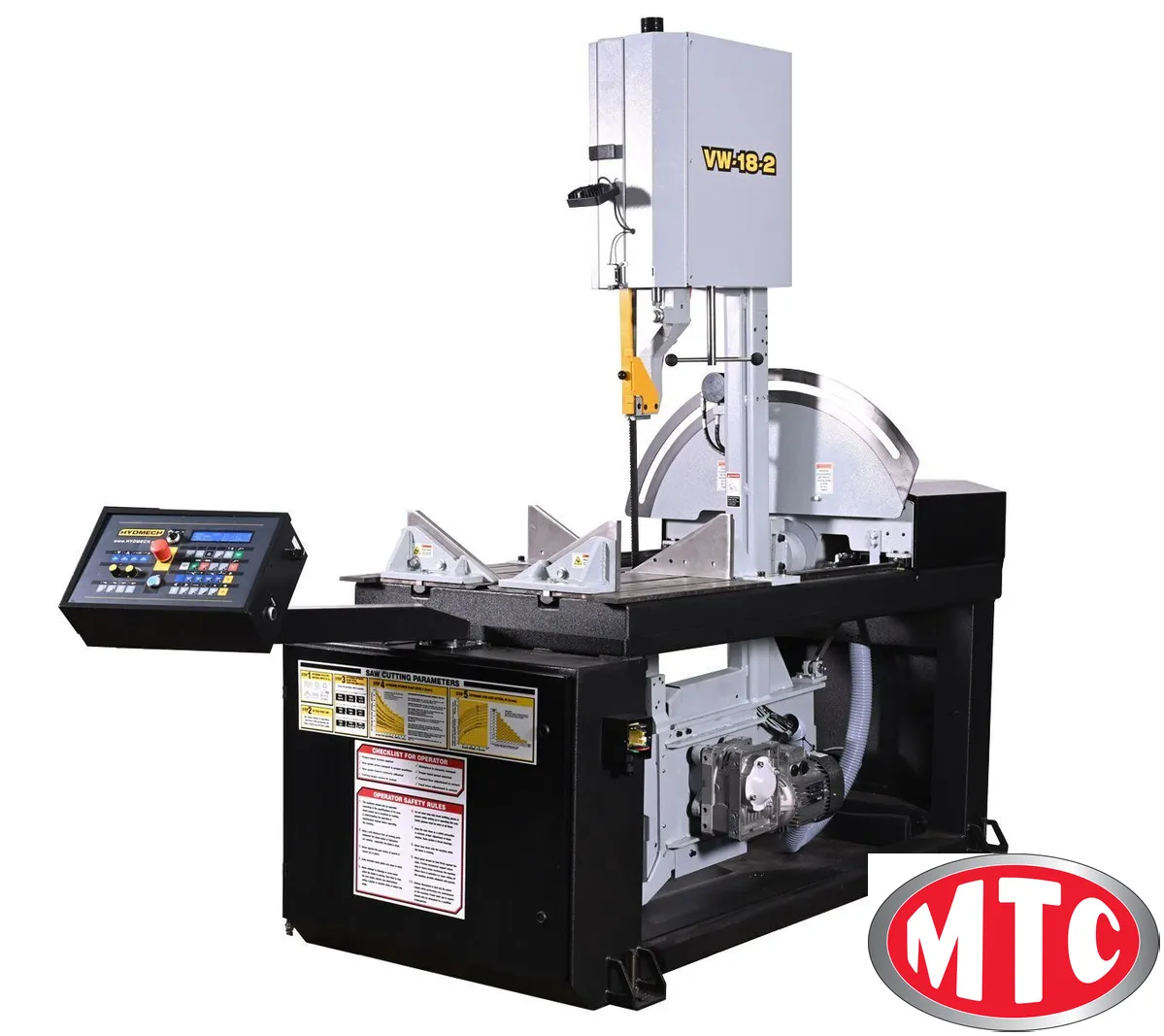

New 2026 HYD-MECH VW-18M-2 | vertical tilt frame saws

Technical Specifications

Standard Head 3° Canted Head
Capacity Rectangular (h x w) Round Rectangular (h x w) Round
90° 22” x 18” 17 1/2” * 20 3/4” x 18” 17 1/2”*
45° 15” x 18” 12 1/2” 14” x 18” 12 1/2”
60° 10 1/4” x 18” 10 1/4” 9.5” x 18” 9 1/2”

Blade Size 1 1/4” x 16’ 3” Hyd. Tank Capacity 4 Gallons
Blade Drive 5 HP VFD Machine Weight 2,700 lbs.
Motor Voltage 480 v Table Height 36.5”
Blade Speed 65-385 SFM Dimensions (w x l x h) 65” x 123” x 97”
Coolant Tank Capacity 12 Gallons Mitering capability 60° left to 60° right
*If cutting a round piece larger than 12.5”, tall square vise inserts are required.
Please note that tall square vise inserts allow for 90° cuts only

Standard Machine Features

• Adjustable 3° canted head
• Double articulating, semi-automatic control
• Two full stroking hydraulic vises
• Power tilt with programmable go to angle head positioning from 60° left to 60° right
• Powered hydraulic guide arm
• On-demand hydraulics save energy • 5 HP VFD. True direct blade drive – no belts/pulleys
• Hydraulic positive down feed
• Cast iron band wheels
• Replaceable blade brush
• Robust steel base
• Easy access electrical panel and hydraulics
• Blade breakage switch
• Mechanical band tensioning with digital readout
• Replaceable carbide guide inserts
• 0.5 HP hydraulic pump provides system pressure
• Safety door interlocks
• Flood coolant with wash down hose
• Laser light
• Work light
• Variable vise pressure

Optional Machine Features

• Hydraulic overhead bundling
• Tall square vise inserts • Mist lubrication
• Chip bucket • Power transformer
• Idler conveyors
