New

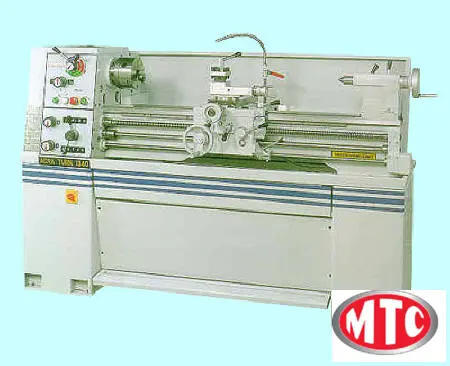

2023 ACRA 1300BV
Engine Lathes
6" 3-jaw, 8" 4-jaw Chucks, Steady rest, Follow rest, Coolant system, 4 way tool post, full length splash gaurds and manuals and Micro Carraige stop
| Swing | 13" |
| Centers | 40" |
| Spindle Bore | 1,916" |
| Power | 3 hp |
| RPM | 2,000 RPM |
| Swing Over Cross Slide | 814" |
| Dimensions | 72" x 29" x 47" High |
| Weight | 1,600 lbs. |
Swing over bed 13"
Swing in gap 18 - 1/2"
Swing over cross slide 8 - 5/16"
Spindle Bore 1 - 9/16"
Spindle Nose D1-4
Spindle speeds Variable
Spindle RPM 40 - 2000
Spindle motor 3 H.P.
Travel Cross slide 6 1/2"
Travel Compound Slide 3 3/8"
Inch Threads 4-56 TPI
Metric Treads .04mm - 7mm
Longitudinal feeds 0.0033" - 0.0736" Rev
Cross feeds 0.0011 - 0.0245" Rev
Tail Stock Quill dia. 1 9/16"
Quill travel 4 3/8"
Quill taper #3 M.T.
Voltage 220 AC 60 - 1PH/3PH
Length - Width - Height 72" x 29" x 47"
Weight 1320Lbs
Ship Weight 1600Lbs
Newall Digital read outs 8" x 40" NMS 300 $1,450.00
DRO install $250.00
Lever type 5c collet attach $1,200.00
Taper Attachment $1,250.00
Taper Installment $350.00
Live center #3 M.T. $100.00
440 volt 3 phase $375.00
Face Plate $250.00
Lever Type 5C Collet Closer $1,000.00
Newall Digital Read Outs DP 700 $2,620.00
Acu-Rite Digital Read Out 8 X 40 #303 $3,000.00
Sony Or Fagor Digital read outs P.O.R.
Freight LA, CA to IL $ 950.00 Approx.
