New 2024 ACRA 1640-TE | Engine Lathes

Have one to sell?
847-290-0167
sales@myerstc.com
ConditionNew
1 available
Have one to sell?

Overview

Type:
Engine Lathes
Manufacturer:
ACRA
Model:
1640-TE
Condition:
New - In-Stock
Year:
2024
Stock #:
3597
Status:
For Sale
Serial #:
ATEL-10

Description

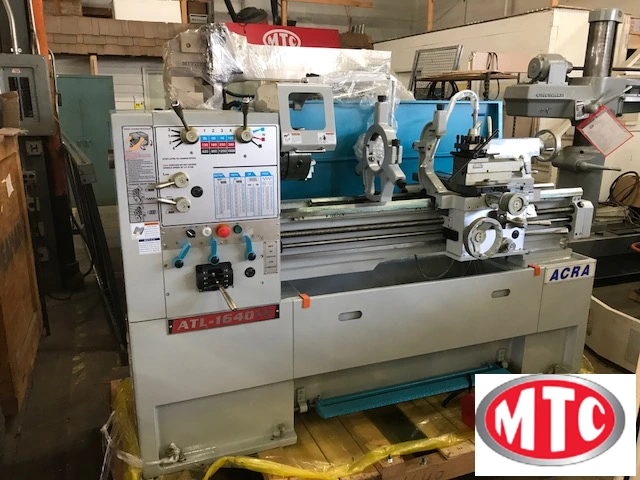

Acra 1640-TE Engine Lathe.

Precision Engine lathe, Gap bed lathe

STANDARD ACCESSORIES:
8" 3 Jaw Chuck
Full Length Splash Guard
Face Plate
10" 4 Jaw Chuck

Coolont System
4 Way Tool Holder
Steady/Follow Rest

Swing16.188"411.16 mm
Centers40"1,016 mm
Spindle Bore2.0625"52.388 mm
Power5 hp3.7 kW
RPM1,800 RPM1,800 RPM
Swing Over Cross Slide10.375"263.52 mm

Swing over bed 16"
Spindle Bore 2 1/16"
Distance between centers 40"
Spindle Nose D1-6
Spindle speeds 12
Spindle RPM 1,800 RPM
Spindle motor 5 HP
Travel Cross slide 8 11/16"
Travel Compound Slide 5 1/2"
Inch Threads 2 - 72 TPI
Metric Treads 0.2 - 14mm
Longitudinal feeds 0.002 - 0.067"/rev
Cross feeds 0.001 - 0.034"/rev
Tail Stock Quill dia. 2"
Quill travel 6"
Quill taper MT NO.4
Voltage 220/440V AC / 3 PH / 1 PH
Weight 3,400 Lbs.
