New 2024 ACRA ATEL 1550C | Engine Lathes
Have one to sell?
ConditionNew
1 available
New

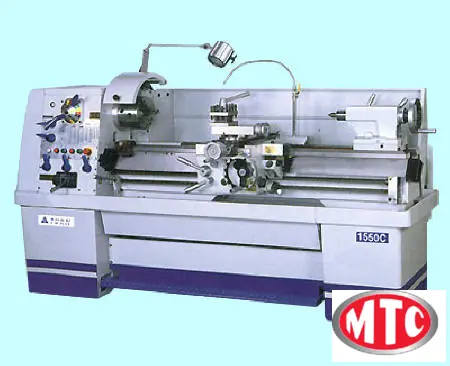

Acra 15 X50 C Precision Engine Lathe
New Precision Engine lathe Acra ATEL 1550C
Automatic Feed And Threading, Fully Interlocked
Saddle And Top Slide Locking System. Dynamically Balanced, Hardened And Precision Ground. Supported By 2 Precision Taper Roller Bearings And One Ball Bearing.Base One Piece Casting
Meehanite Casting, Vibration Stress Relieved.
Induction Hardened And Precision Ground Bed Ways.
Precision Hand Scraped Removable Gap.Foot Brake
8" 3 Jaw Chuck Coolant System Full Length Splash Guard 10" 4 Jaw Chuck Halogen Light
Steady/Follow Rest 4 Way Tool Holder
Swing over bed 15 1/4"
Swing in gap 24"
Swing over cross slide 9 3/8"
Spindle Bore 2 3/16"
Spindle Nose D1-6
Spindle speeds Steps -16 ... Range 25 ~ 2000
Spindle RPM 25 - 2000
Spindel motor 7 1/2 Hp
Travel Cross slide 9 1/4"
Travel Compound Slide 4 3/4"
Inch Threads 2 - 72 TPI
Metric Treads 0.2 - 14mm
Longitudunal feeds 0.002 - 0.067"/rev
Cross feeds 0.001 - 0.0371"/rev
Tail Stock Quill dia. 2 5/16
Quill travel 5"
Quill taper MT NO.4
Voltage 220/440V AC / 3 PH
Length 92"
Width/ Height 38"x50"
Weight 3,750 LBS
