New 2024 ACRA ATL-27EVS | lathe
Have one to sell?
ConditionNew
1 available
New

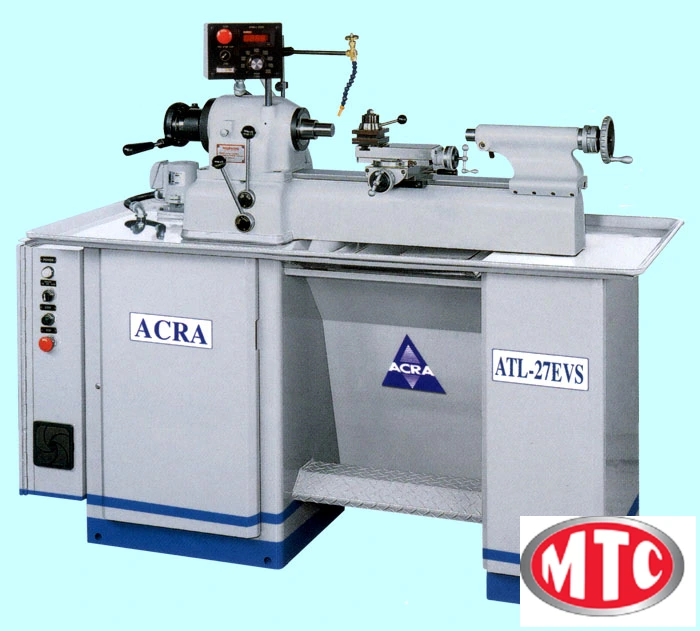

Acra ATL-27EVS Toolmakers Lathe, Second Operation Precision Lathe
High Performance Machining Capability Of
Shaft, Chucking Or Collet Held Workpiece
9" Swing Over head
36" Length Of Bed
The Spindle Is Mounted In High Precision
Preloaded Angular Contact Ball Bearings
Eliminating Radial And End Play
Fast Lever Collet Chucking With A Single
Movement
Variable Spindle Speeds 0~4000 RPM
X, Y Axis Compound Slide
Screw Feed Tailstock
Solid Hardened And Ground Alloy Tool Steel
Bed Ways
Powerful 5 HP Frequency Controlled Motor
Hi/Low Speed Quick Change Lever For
Convenience
5 C Lever Collet Closer, Double Tool Cross Slide, Coolant System, Six Station Turret, Automatic Spindle Brake
W/ Chuck 6"
W/ Expanding Collets 3"
W/ Round 5C Collets 1 1/16"
W/ Hexagon 5C Collets 7/8"
W/ Square 5C Collets 3/4"
W/ Step Chuck 1 1/16" - 6"
Spindle Nose Diameter 2 3/16"
Spindle Nose 5C(10degree)
Spindle RPM (Variable) 0- 4,000 RPM
Inverter Spindle Motor 5 HP
Hole Thru Spindle 1 1/4"
Bar Stock Diameter(5C Collet) 1 1/16"
Swing Over Bed 9"
Cross Slide Travel 3 3/4"
Coolant Pump 1/8 HP, 220V, 3PH
Net Weight 990 Lbs.
Shipping Weight 1,364 LBS.
Dimensions 69" x 28" x 63"
